COLONNADE LIGHT TRACK II
Specifications
Configuration Guidelines
Warranty Information
Installation Manuals
Price Sheets
Colonnade Lights International offers Colonnade Light Track II in multiple configurations and models with custom options available on special order. Standard model choices include:
- Fixed & variable spacing between bulbs,
- Intermediate or Medium based sockets,
- Wide bulb range from 1 Watt LED, 2-8 watt CCF, 15 watt CF and up to 100 Watt incandescent
- 10' to 25' Custon & standard Track sections.
CUSTOM OPTIONS: Almost unlimited options from bulb spacing on a variable or fixed dimension; special colors for custom runs of track; custom mounting brackets; lighting sequencers and flashers.
 |

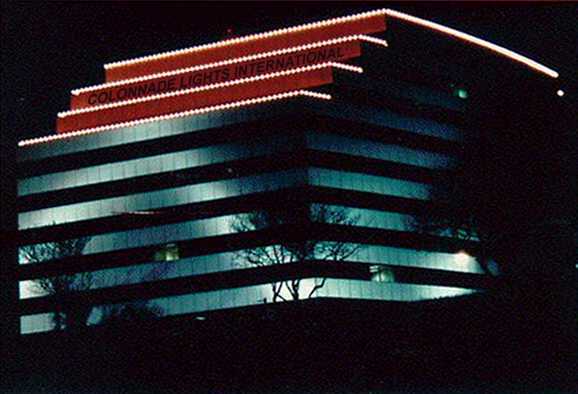

Picture of light track on Central Bank Building with multiple levels.
|
LISTED PRODUCT VS. AN UNLISTED PRODUCT
All configurations are available in Colonnade Light Track II, the tested and "listed" version. The Listed Track has been tested by an independent laboratory. The Track is labeled as "Suitable for Wet Locations" with this listing meets most all U.S. as well as other international code requirements for exterior installation. The listed Track gives you the assurance that the product has been tested by a recognized testing laboratory to conform with "UL-1598." Most all local jurisdictions will accept this "Listing" without question. In the event that there are any questions raised or a code requires more information, please refer this directly to us.
TRACK LENGTH DETERMINATION
Determine the longest possible standard length to save time on installation and connections. (Custom lengths are available of up to 40') To determine the appropriate section lengths, consider where joints would fall and the method by which you will install the track on the roof or building location. If track installation is temporary and must be removed each year, then the storage location and methods used for the installation and removal should aid in determining the track length.
GUIDELINE BULB SPACING VARIATIONS
Variations on the guideline regarding building height and the recommended
Colonnade Light Track bulb spacing may be necessary in special situations
where:
- the proximity of other buildings, lighted or unlighted, is considered
- exceptional building dimensions/architecture,
- there are special visibility requirements.
- We will be glad to consult with your building's particular requirement.
COLONNADE LIGHTS TRACK CONFIGURATION GUIDELINES
AND RECOMMENDED BULB SPACING:
For Building Heights We Recommend
[With Track lengths]
1-4 Stories 12" O. C., intermediate
10', 12', 20', 24', 25' 1 watt LED; 7 watt Incandescent
2-3 watt CCF or 1 watt LED C-9 or G-30 (5/LED)
5-10 Stories 18" O. C., medium base
12', 24' 2-3 Watt CCF 15-25 Watt Incandescent
2 watt LED G-50 (10/LED)
11-20 Stories 24" O. C., medium base
10', 12', 20', 24' 5 Watt CCF; 40 Watt Incandescent
21-40 Stories 30" O. C., medium base
10', 20', 25' 8 Watt CCF; 60 Watt Incandescent
15 Watt CF (warm cathode)
41-65 Stories 36" O. C., medium base
12', 24' 8 Watt CCF; 75 Watt Incandescent
15 Watt CF (warm cathode)
66+ Stories 42" O. C., medium base
14', 24'-6" 8 Watt CCF; 100 Watt Incandescent
15 Watt CF (warm cathode)
Contact us for new options and other configuration of bulbs that may be used.
The accessories to attach the track to the building and the bulbs are purchased separately depending on application. See Accessories and installation instructions for more information. Track does not include power cords, knock-outs or wiring connectors. See also "Special Configurations.
Warranty
All final assembled Colonnade Light Track products; Parts and components, consisting of track housing, wiring and light bulb sockets are warranted to be free in manufacturer defects for a period of two (2) years from the date of shipment. PVC track in colors other than white are not warranted for distortion due to heat or sunlight exposure outdoors. This warranty covers the replacement of these parts and or component parts that prove, upon inspection by Colonnade Lights International, Inc. to be defective in the manufacturing. Wear, abuse or direct damage are not covered.
Colonnade Lights International sole responsibility shall be for the repair or replacement, as determined by Colonnade Lights International, of the defective part or component part(s). All returns must be accompanied by a written authorization for return and shipped freight prepaid to Colonnade Lights International. Repaired parts and or component parts will be shipped FOB factory or freight collect. Colonnade Lights assumes no liability for consequential damages, loss of use, time or other claims that may arise out of the use, installation or operation of the Products.
The Listed PVC and Aluminum housing the Colonnade Light Track is warranted for an additional one (1) year over and above the standard warranty not to crack, disintegrate or become unusable under normal outdoor conditions. Normal weathering and "dulling" of the finish is excluded. The application of paint, adhesives, coatings, direct light sources other than natural occurring light will void this additional year of warranty if in the opinion of Colonnade Lights International that such substance or activity may have had an influence on the track.
No warranty, certification or engineering is included for any specific installation, building requirements, codes or individual instances and the suitability for compliance with any local codes, ordinances or other requirements other than the Listing afforded with this product is not included with the purchase of this product. Uses and installations other than those specifically covered in this installation manual are at the sole risk of the installer and Colonnade Lights International, Incorporated assumes no liability for such installation or resulting liability that may occur.
NOTE: Prices, terms, conditions are subject to change without notice or obligation of the manufacturer. Ties, light bulbs, adhesives, caulk, sealants, switching systems, electronic sequencers, chasers, screws, nuts, bolts and other accessories are not covered under this warranty. Warranties for these items are by their respective manufacturers.
Installation manual in Adobe Acrobat (pdf) Format (134K)
Online Installation Manual (26K)
